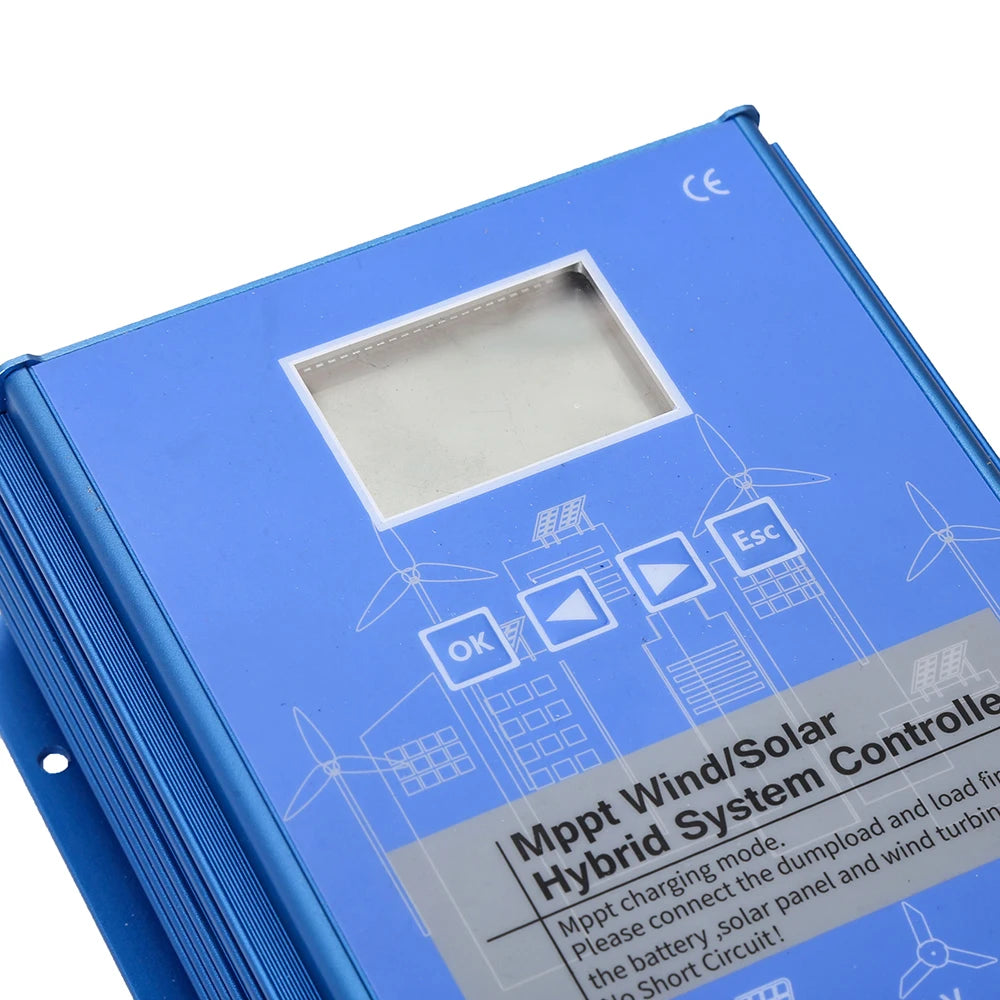

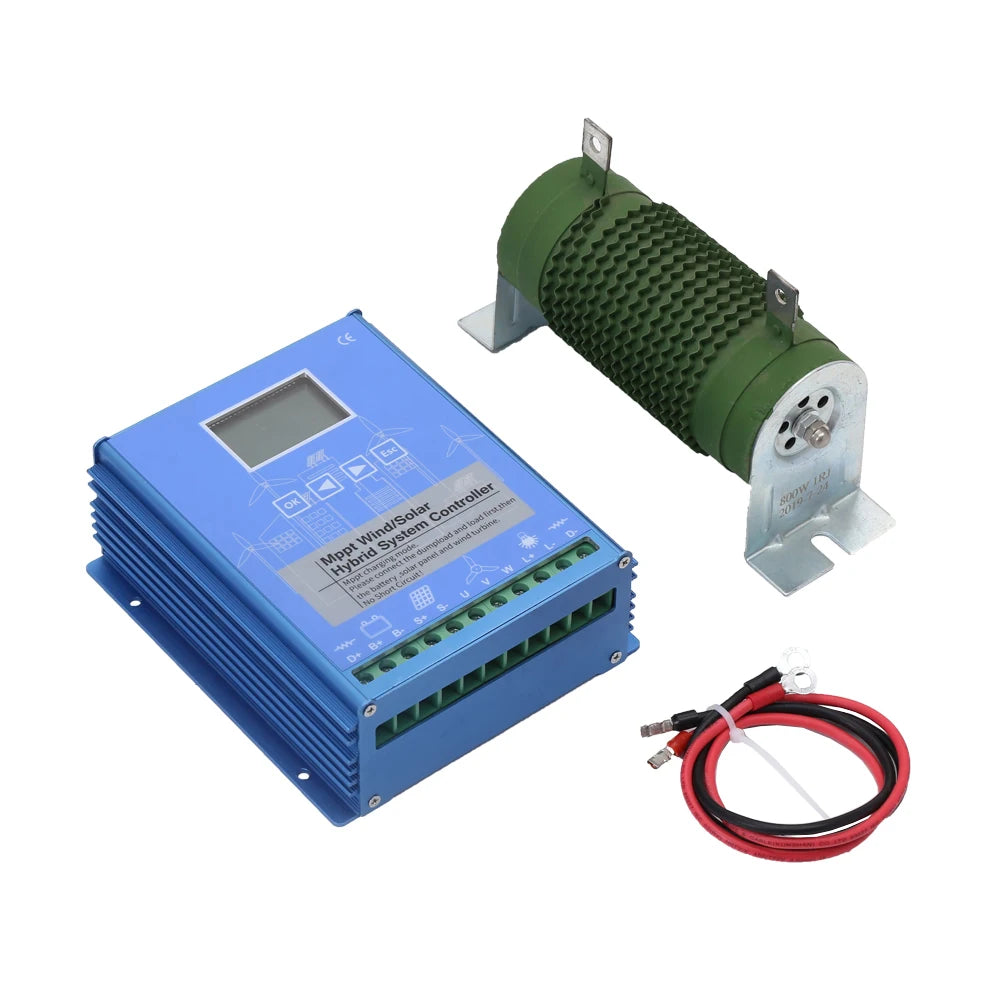

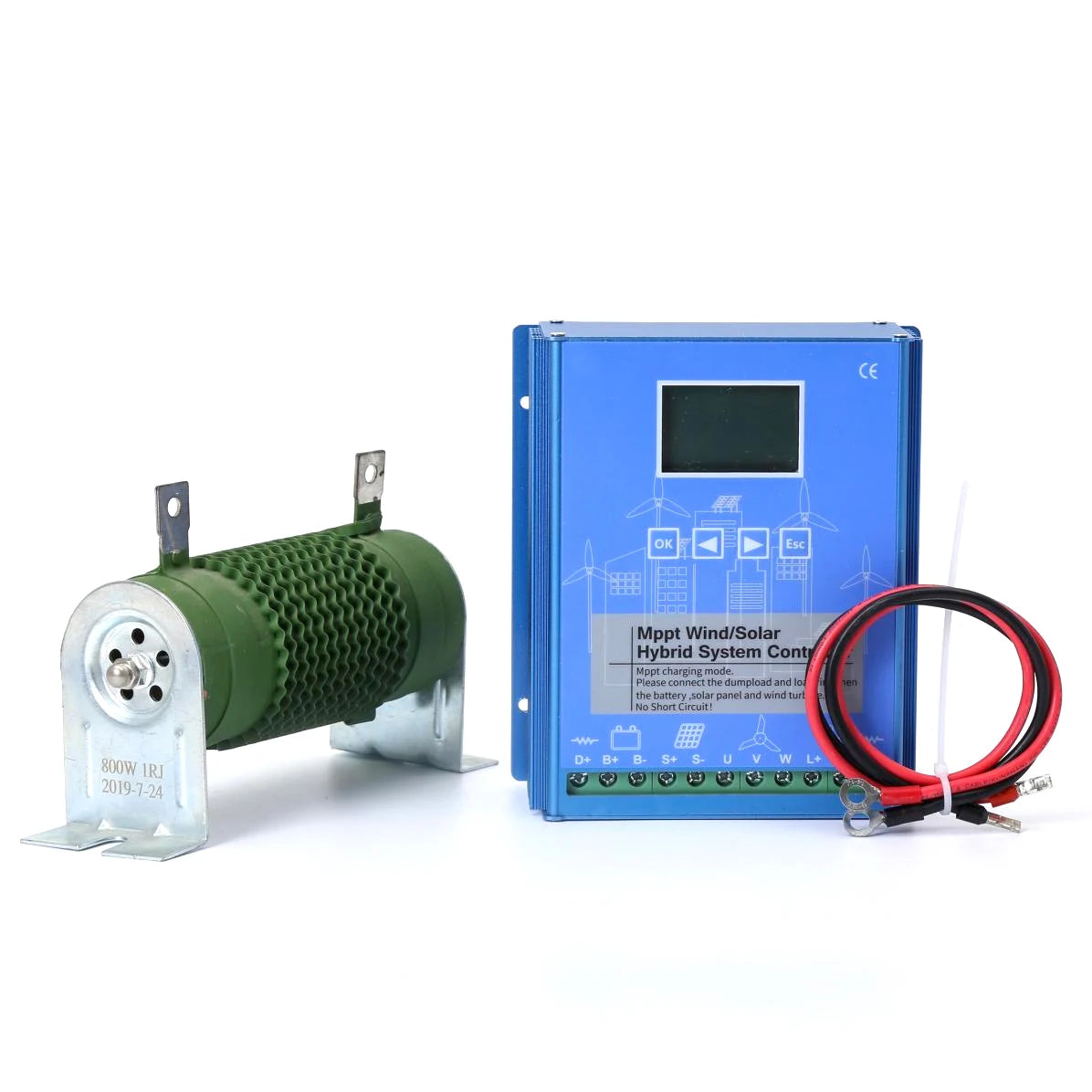

MPPT Wind Solar Hybrid Charge Controller Wind 1500W & Solar 1200W 12/24V/48V Automatic Hybrid Controller With Dump Load Resistor

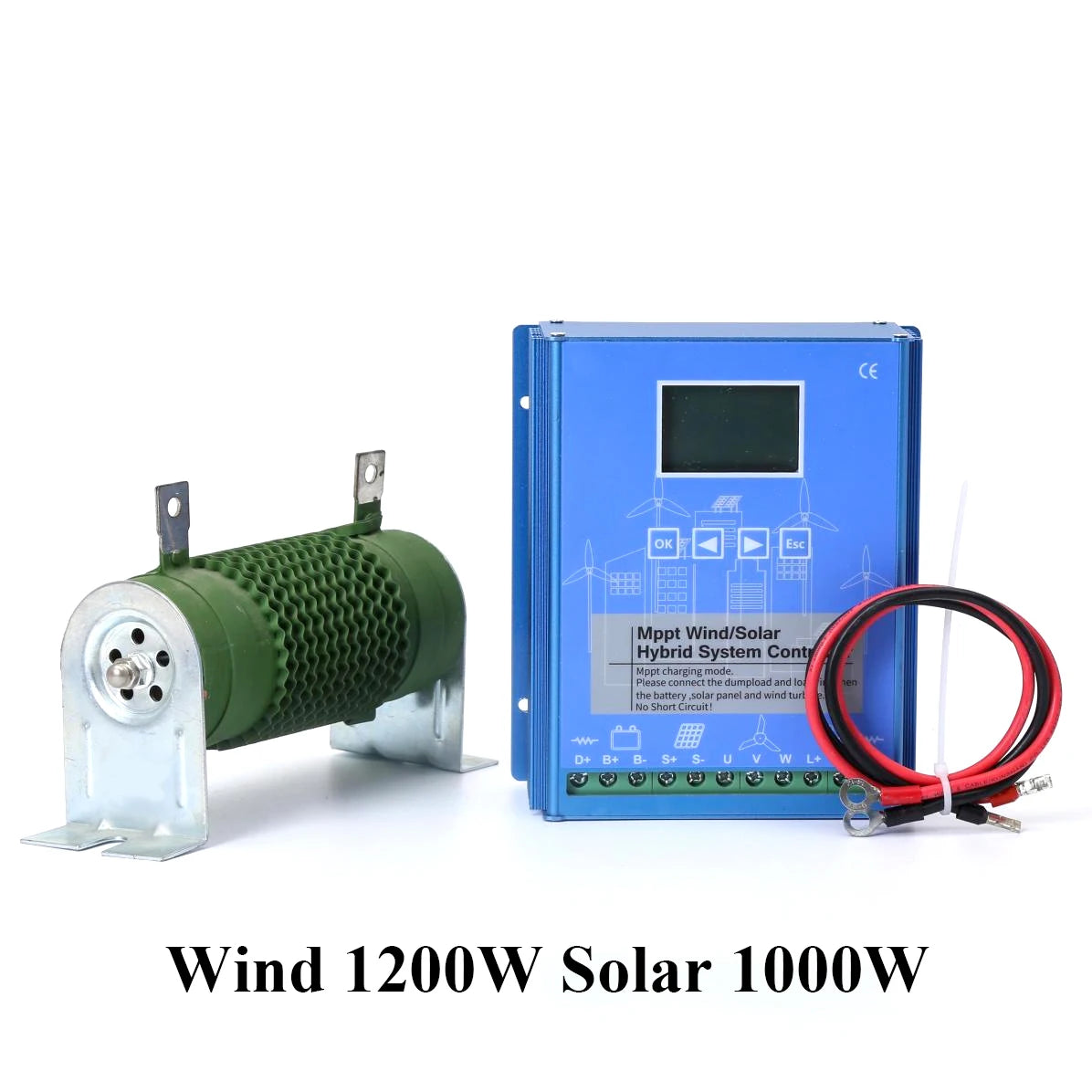

Wind 1200W & Solar 1000W MPPT Wind Solar Hybrid Charge Controller 12/24/48V Automatic Hybrid Controller With Dump Load Resistor

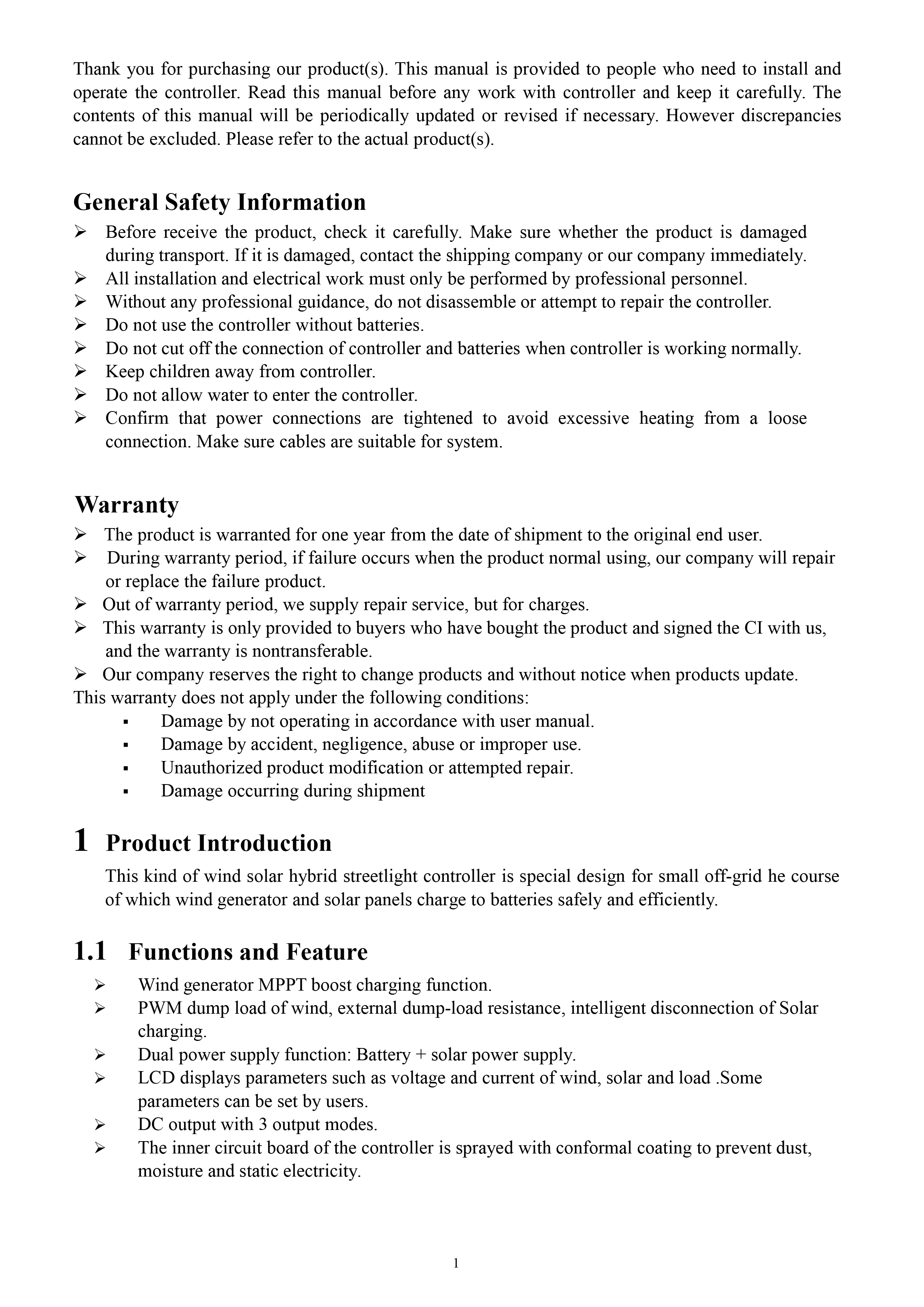

Features: This product is a smart controller that combined solar energy controlling and wind energy controlling. It is designed for small Wind Solar hybrid system, especially suitable for Wind Solar hybrid power generation system and Wind Solar hybrid monitoring system. It can control the wind turbines and solar panels simultaneously to charge the battery safely and efficiently. It has a nice appearance, clear instructions and convenient operation. It also has a comprehensive series of protective measures.
Performance: Reliability: Intelligent, modular design, simple structure, powerful functions; Industrial grade high-quality components and strict manufacturing techniques, which is suitable for relatively harsh working environments such as low temperature. It also has reliable performance and long service life.

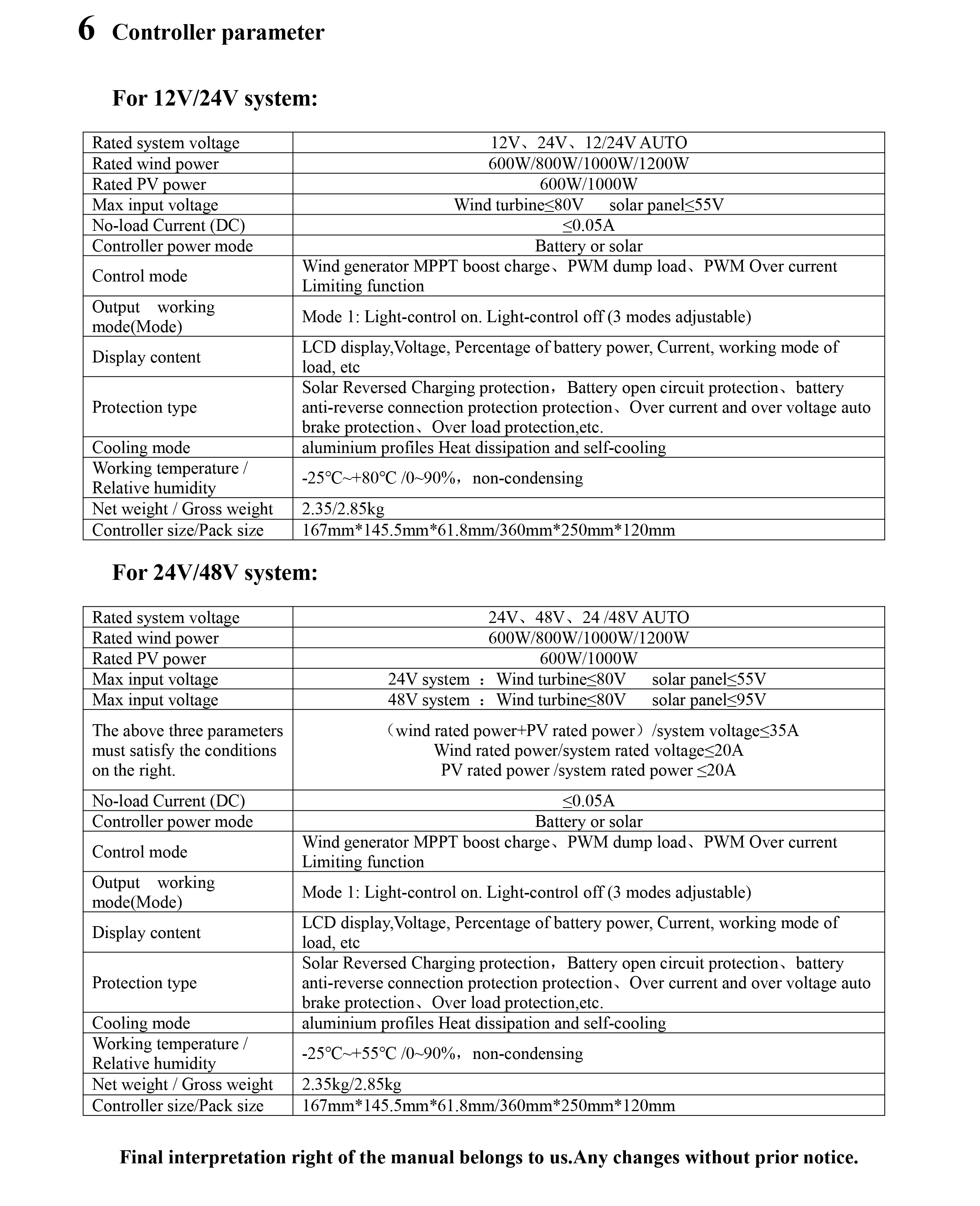

Rated system Voltage |
12V,24V,48V,12/24V AUTO, 24V/48V AUTO |
Rated Wind Power |
100W-600W/100W-800W/100W-1000W/100W-1200W |
Rated PV Power |
100W-600W/100W-1000W |
Max input Voltage |
Wind turbine≤80V |
No-load Current (DC) |
≤0.05A |
Controller Power Mode |
Battery or Solar |
Control Mode |
Wind generator MPPT boost charge,PWM dump load,PWM Over current Limiting function |
Output Working Mode(Mode) |

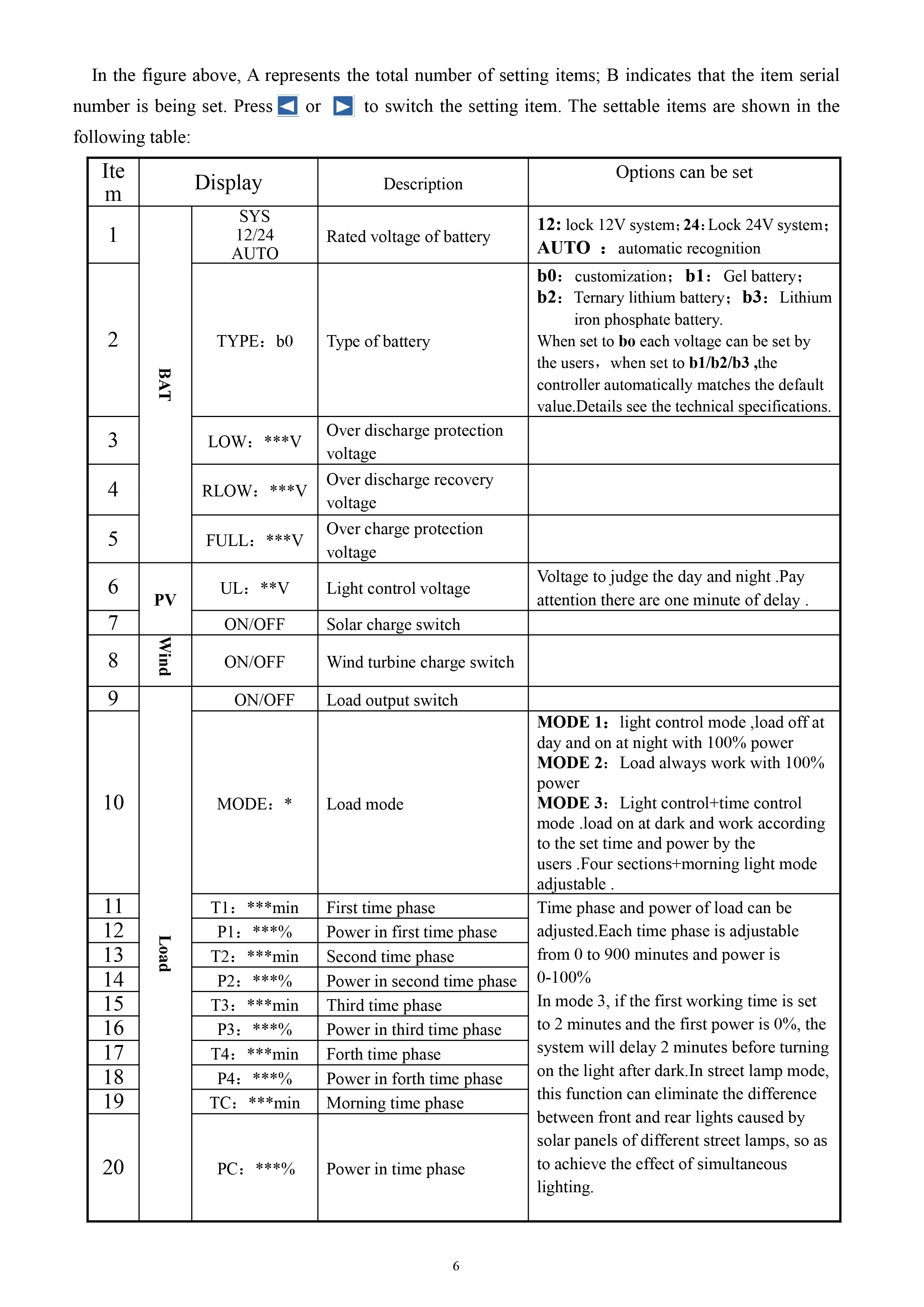

Mode 1: Light-control on. Light-control off (3 modes adjustable) |
Display Parameter |
LCD display,Voltage, Percentage of battery power, Current, Working mode of load, etc |
Protection Type |

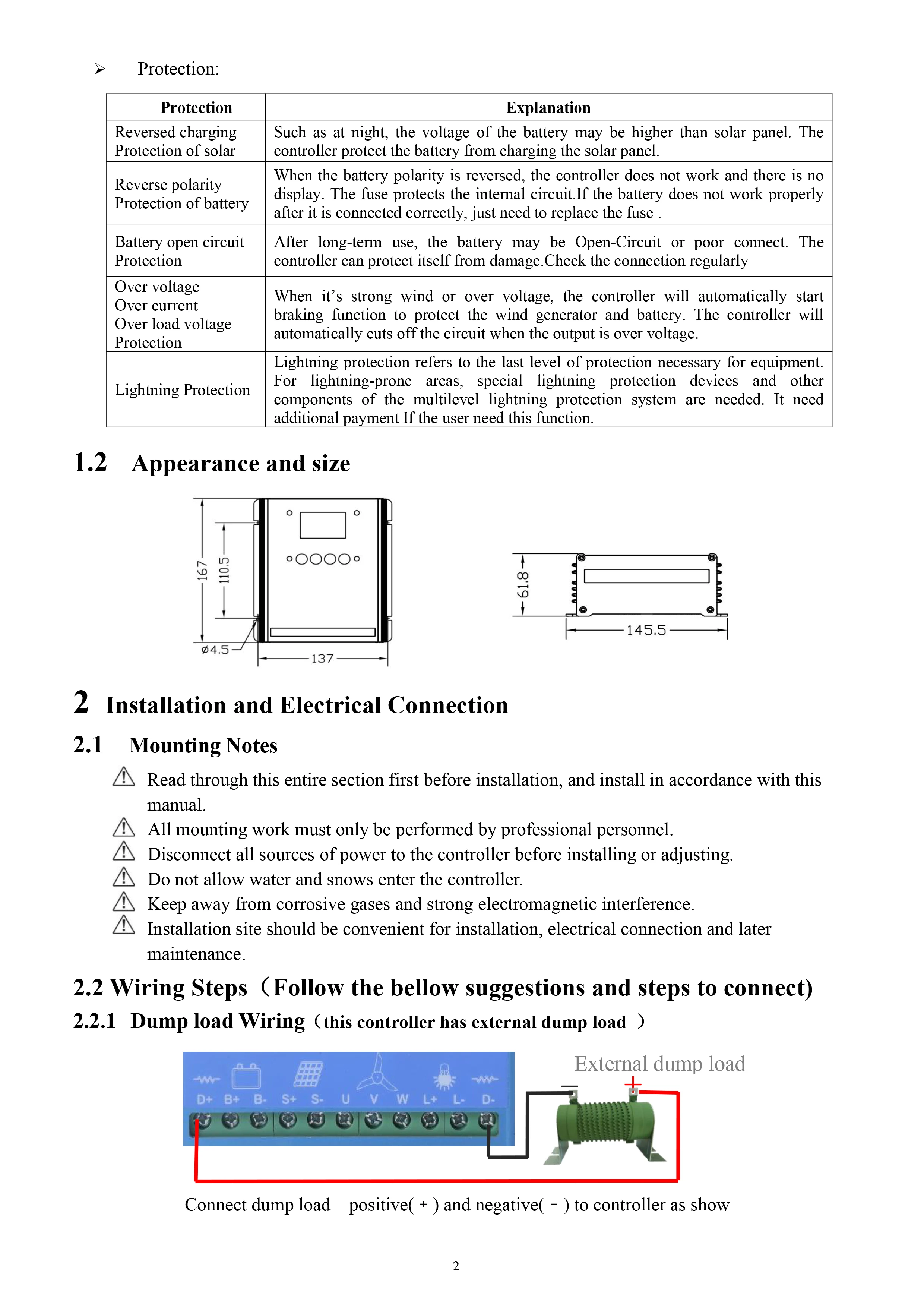

Solar Reversed Charging protection, Battery open circuit protection, Battery anti-reverse connection protection protection, Over current and over voltage auto, Brake protection, Over load protection,etc. |
Cooling Mode |
aluminium profiles Heat dissipation and self-cooling |
Working temperature relative Humidity |
-25℃~+80℃ /0~90%，non-condensing |
Net Weight / Gross Weight |
2.05/2.25kg |
Controller Size/Pack Size |
167mm*145.5mm*61.8mm/360mm*250mm*120mm |

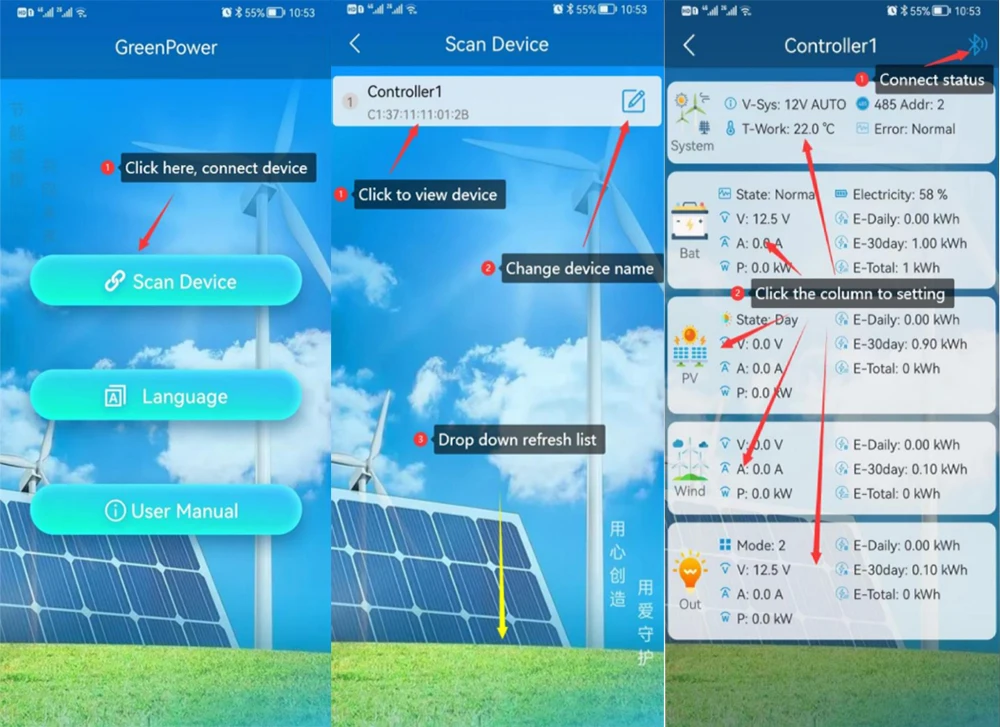

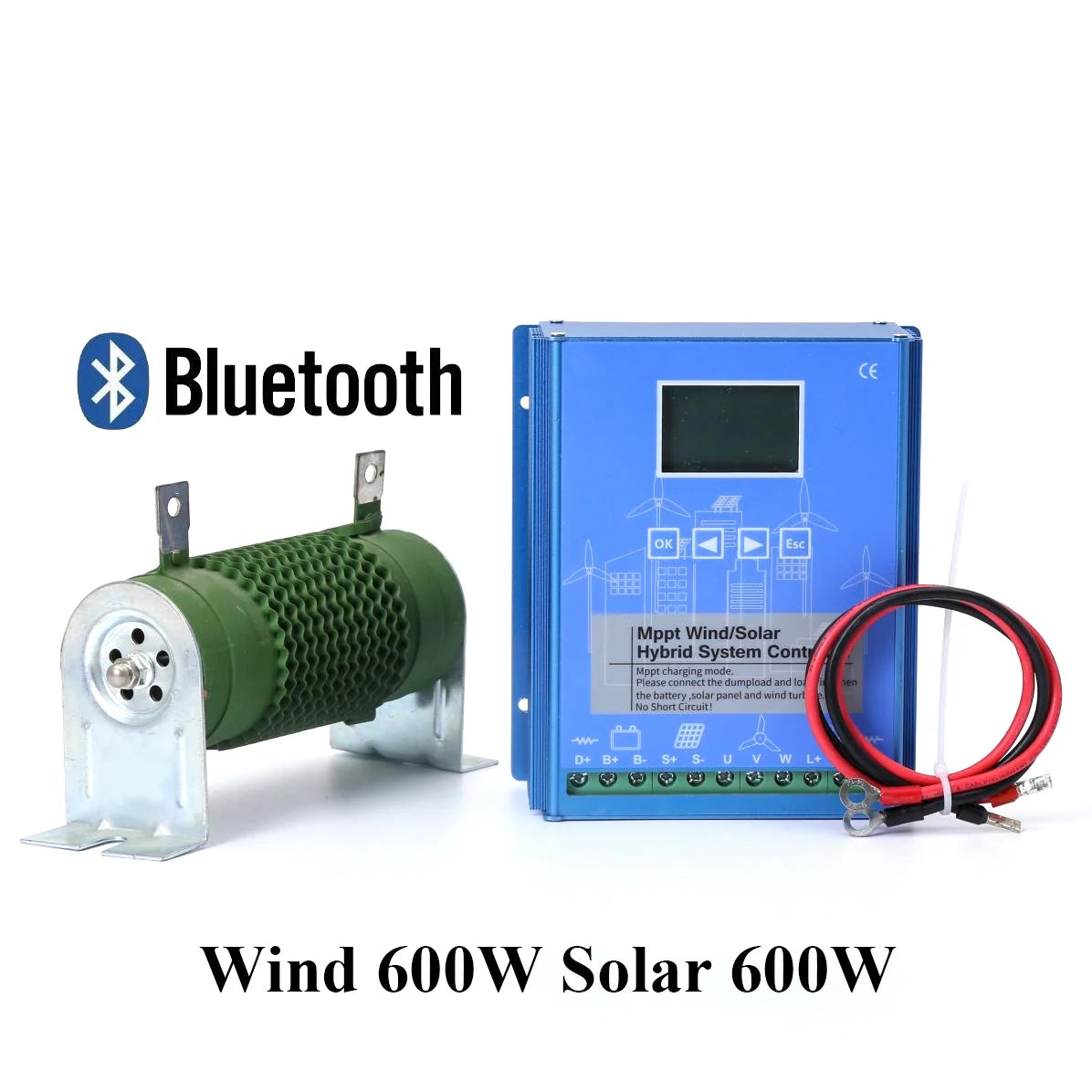

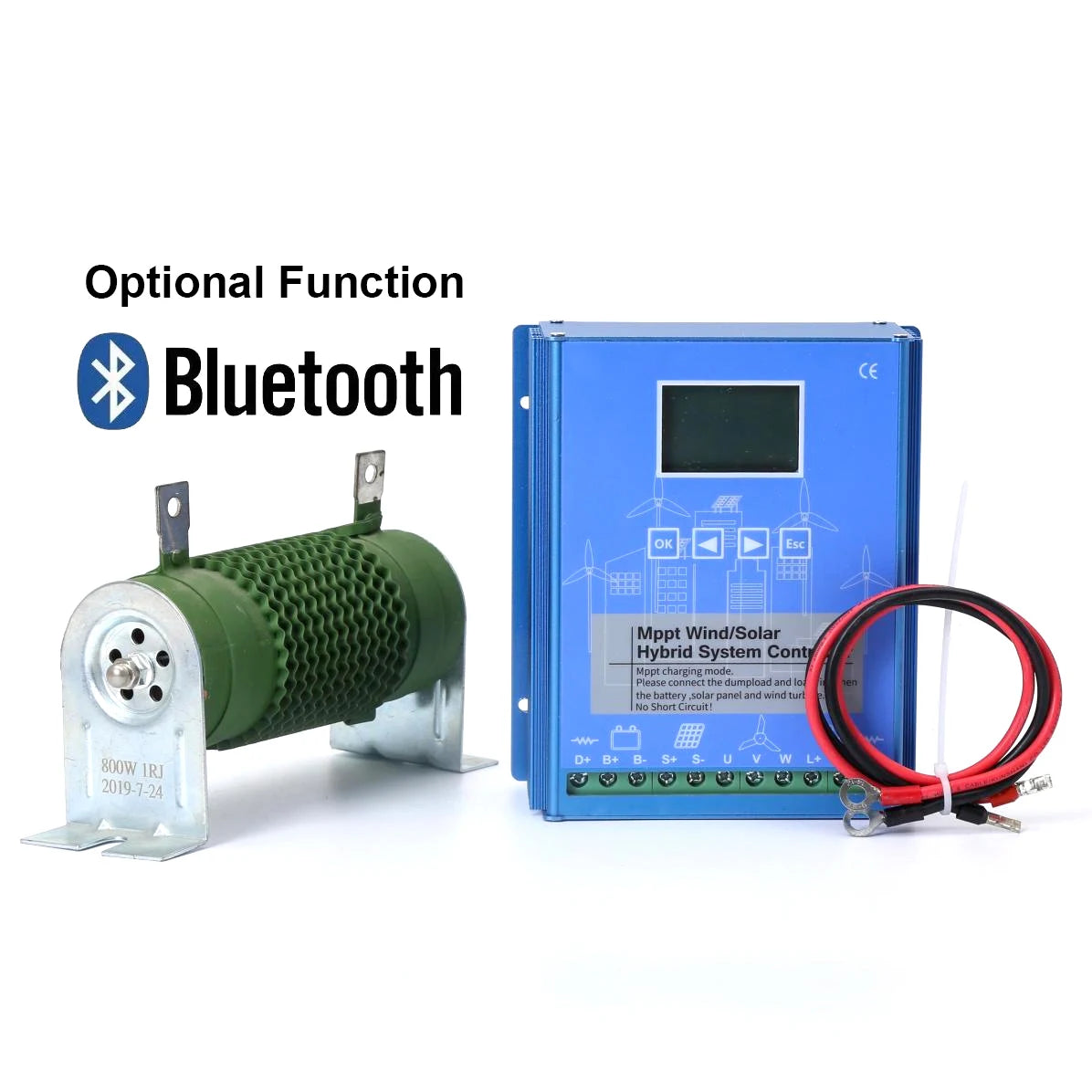

Bluetooth (Only for Andriod Phones)is Optional function.
If you need Bluetooth function, you can choose those item with bluetooth (BT).
