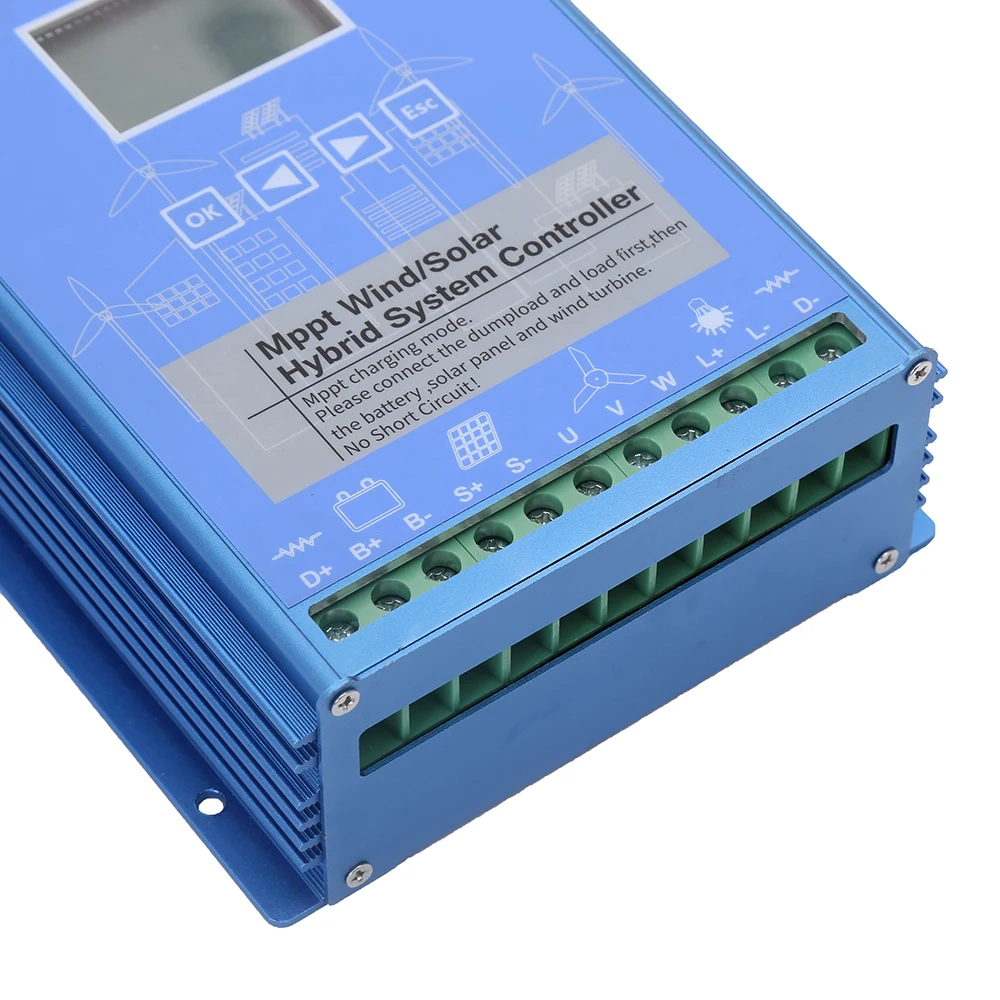

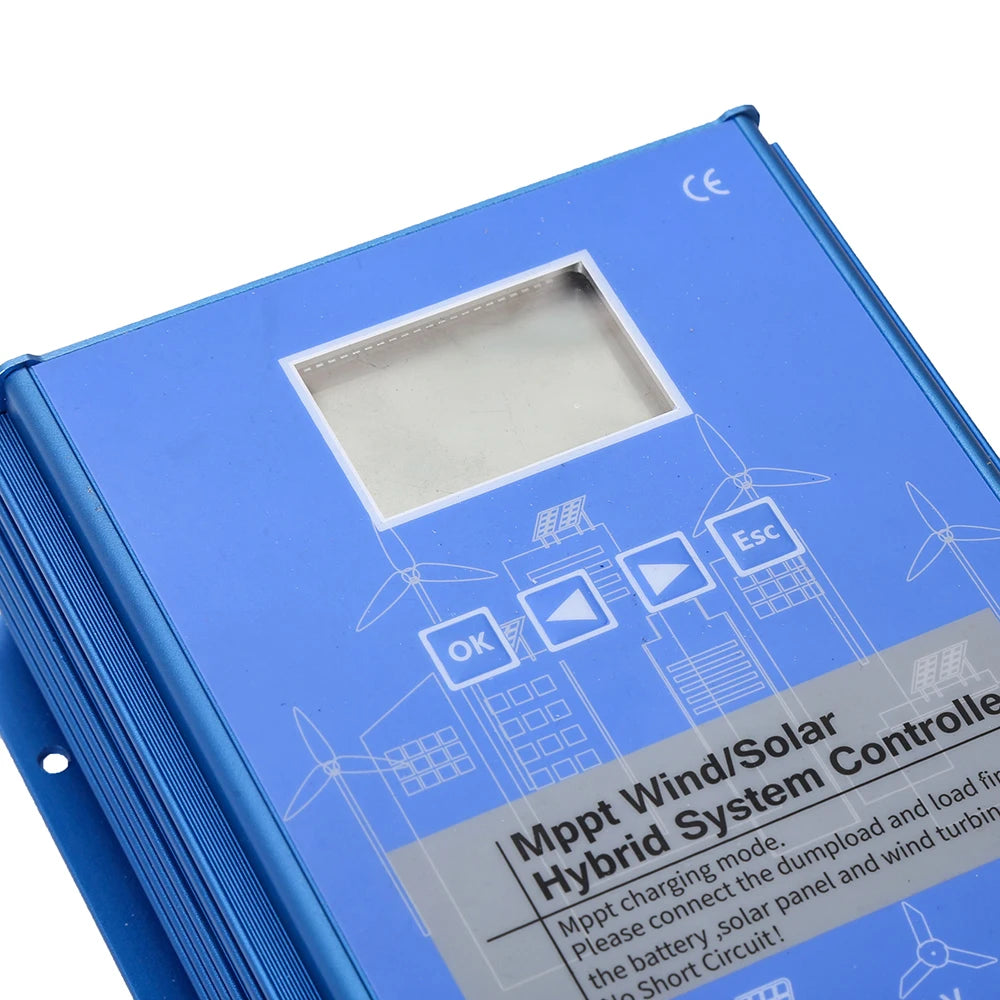

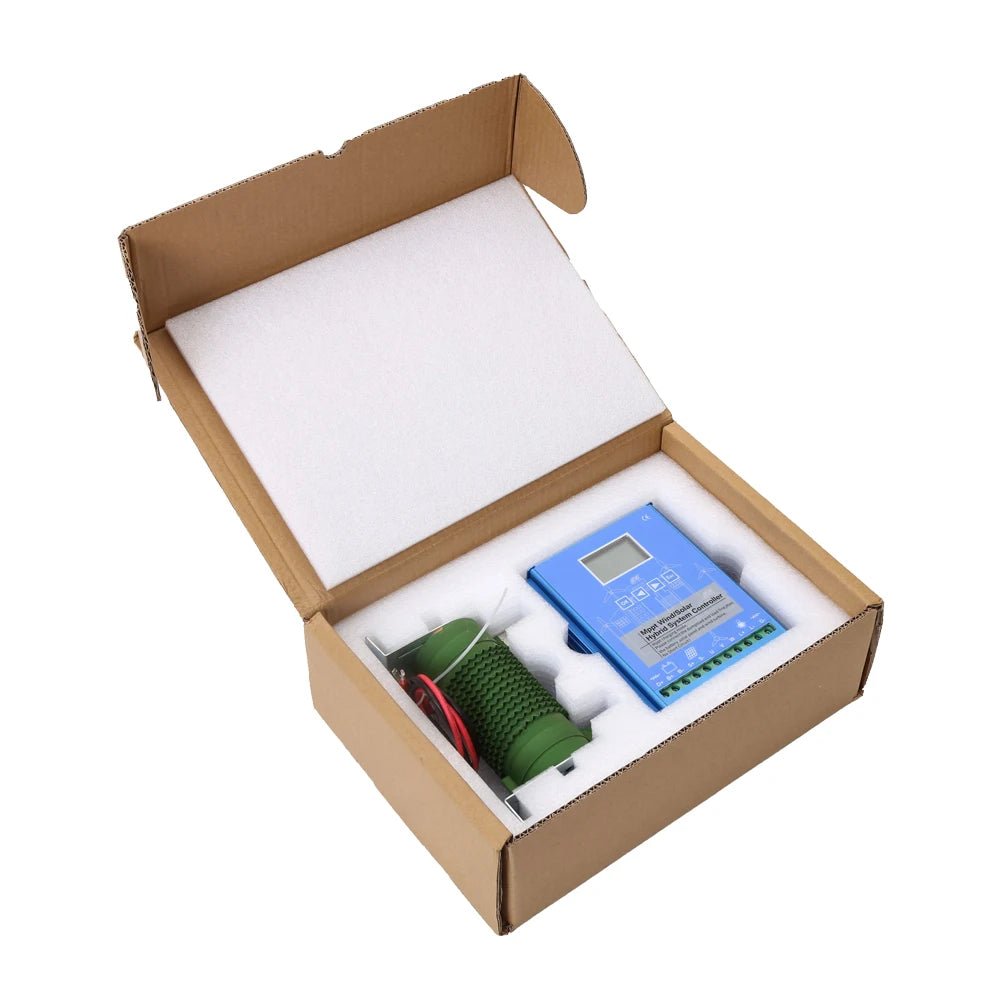

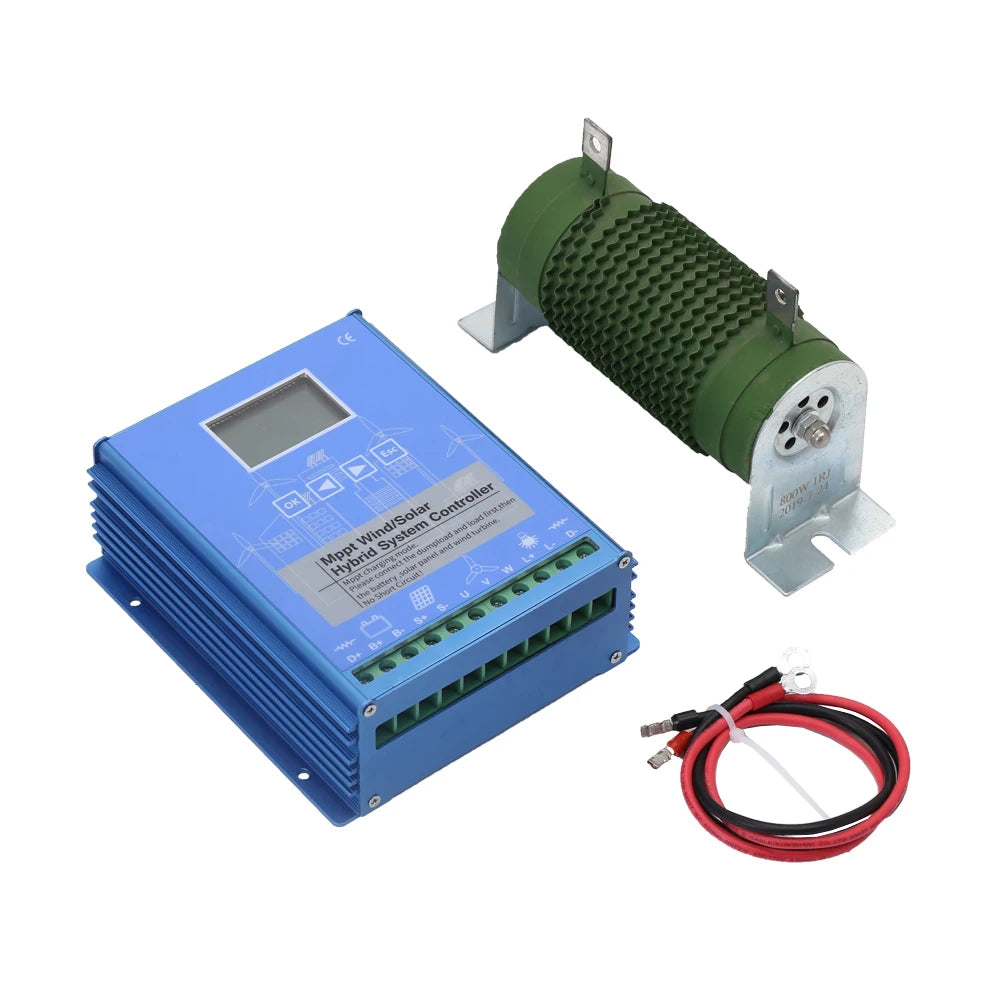

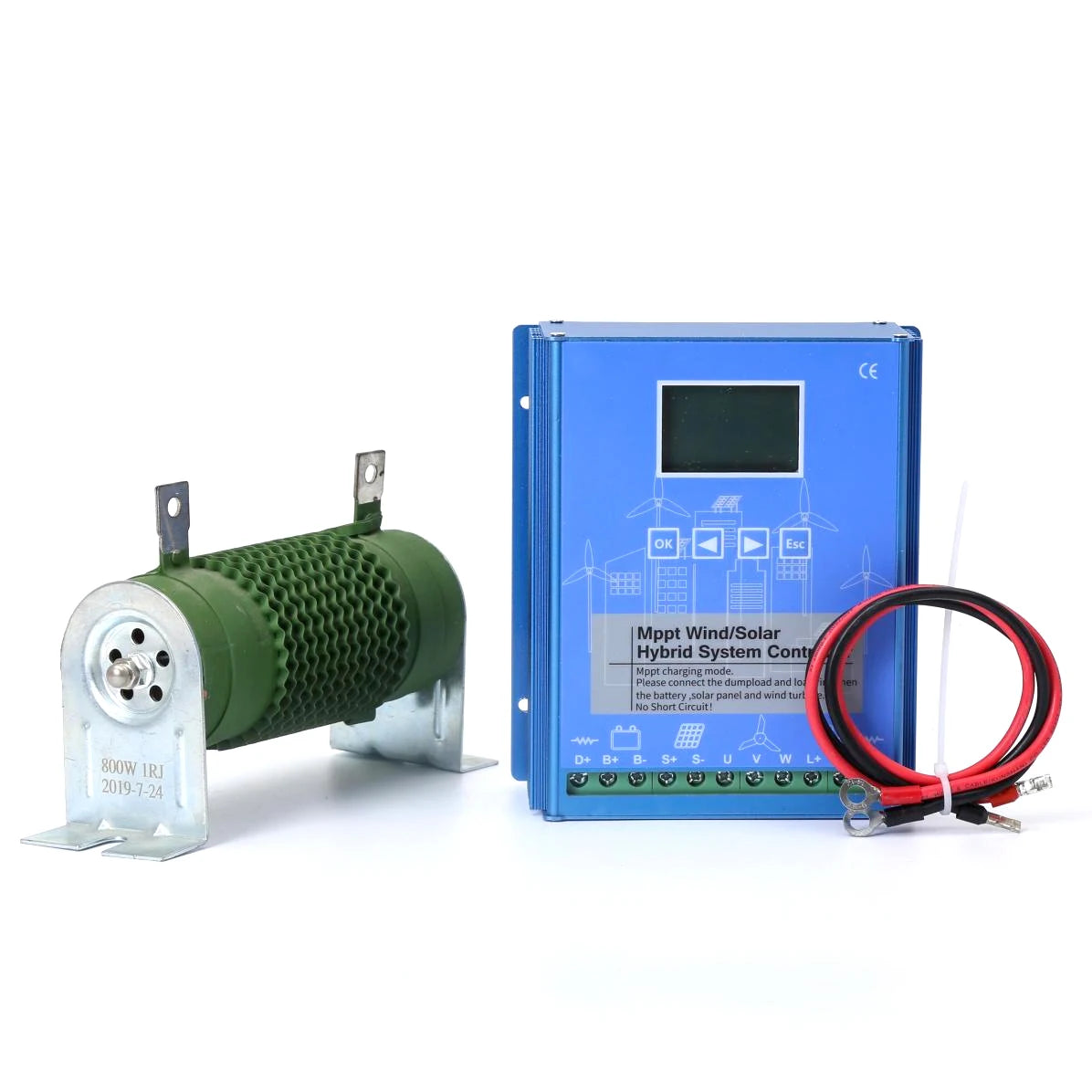

MPPT Wind Solar Hybrid Charge Controller Wind 1200W & Solar 1000W 12/24V/48V Automatic Hybrid Controller With Dump Load Resistor
Wind 1200W & Solar 1000W MPPT Wind Solar Hybrid Charge Controller 12/24/48V Automatic Hybrid Controller With Dump Load Resistor
Features: This product is a smart controller that combined solar energy controlling and wind energy controlling. It is designed for small Wind Solar hybrid system, especially suitable for Wind Solar hybrid power generation system and Wind Solar hybrid monitoring system. It can control the wind turbines and solar panels simultaneously to charge the battery safely and efficiently. It has a nice appearance, clear instructions and convenient operation. It also has a comprehensive series of protective measures.
-
Performance: Reliability: Intelligent, modular design, simple structure, powerful functions; Industrial grade high-quality components and strict manufacturing techniques, which is suitable for relatively harsh working environments such as low temperature. It also has reliable performance and long service life.
Rated system Voltage
12V,24V,48V,12/24V AUTO, 24V/48V AUTO
Rated Wind Power
100W-600W/100W-800W/100W-1000W/100W-1200W
Rated PV Power
100W-600W/100W-1000W
Max input Voltage
Wind turbine≤80V
No-load Current (DC)
≤0.05A
Controller Power Mode
Battery or Solar
Control Mode
Wind generator MPPT boost charge,PWM dump load,PWM Over current Limiting function
Output Working Mode(Mode)
Mode 1: Light-control on. Light-control off (3 modes adjustable)
Display Parameter
LCD display,Voltage, Percentage of battery power, Current, Working mode of load, etc
Protection Type
Solar Reversed Charging protection, Battery open circuit protection, Battery anti-reverse connection protection protection, Over current and over voltage auto, Brake protection, Over load protection,etc.
Cooling Mode
aluminium profiles Heat dissipation and self-cooling
Working temperature relative Humidity
-25℃~+80℃ /0~90%,non-condensing
Net Weight / Gross Weight
2.35/2.85kg
Controller Size/Pack Size
167mm*145.5mm*61.8mm/360mm*250mm*120mm

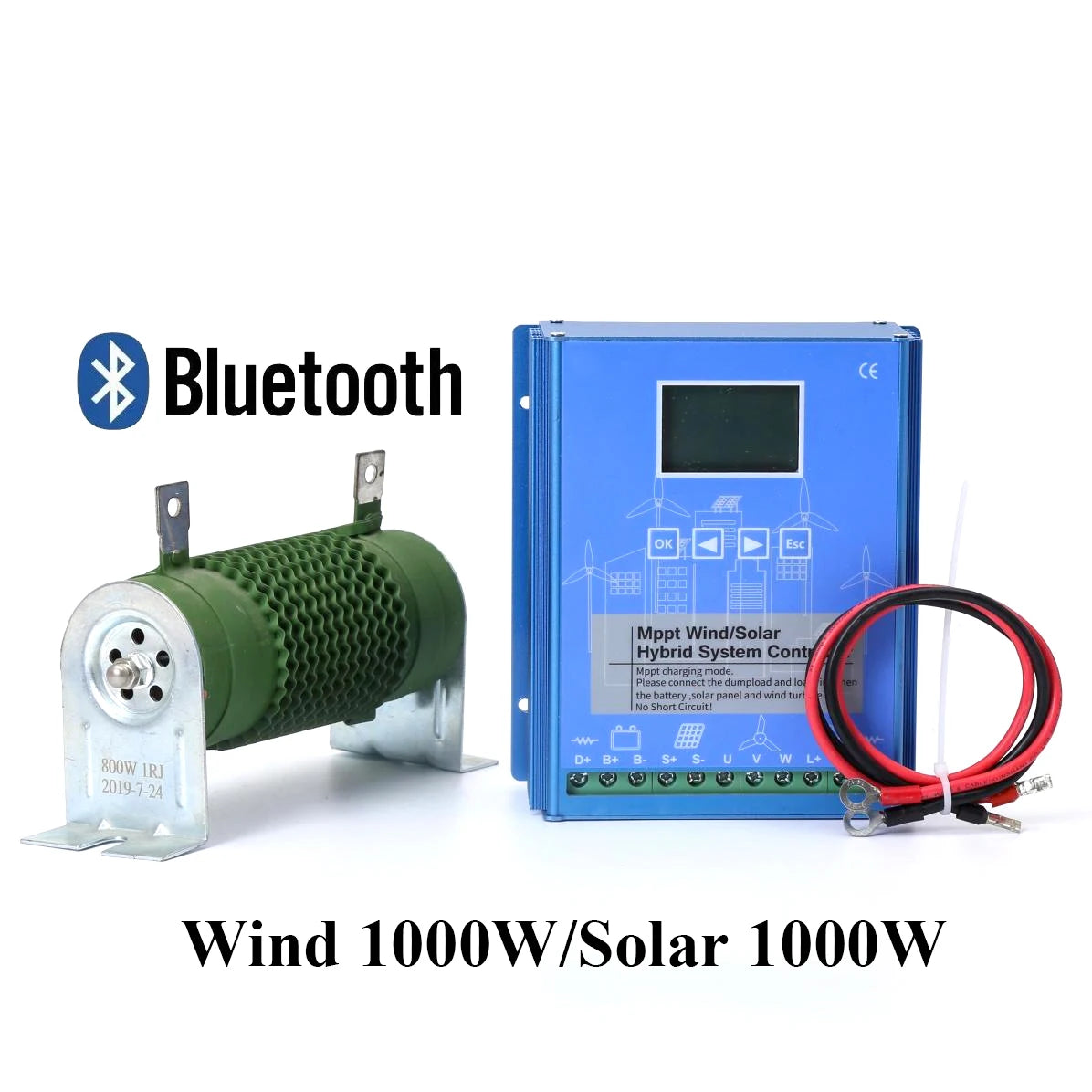

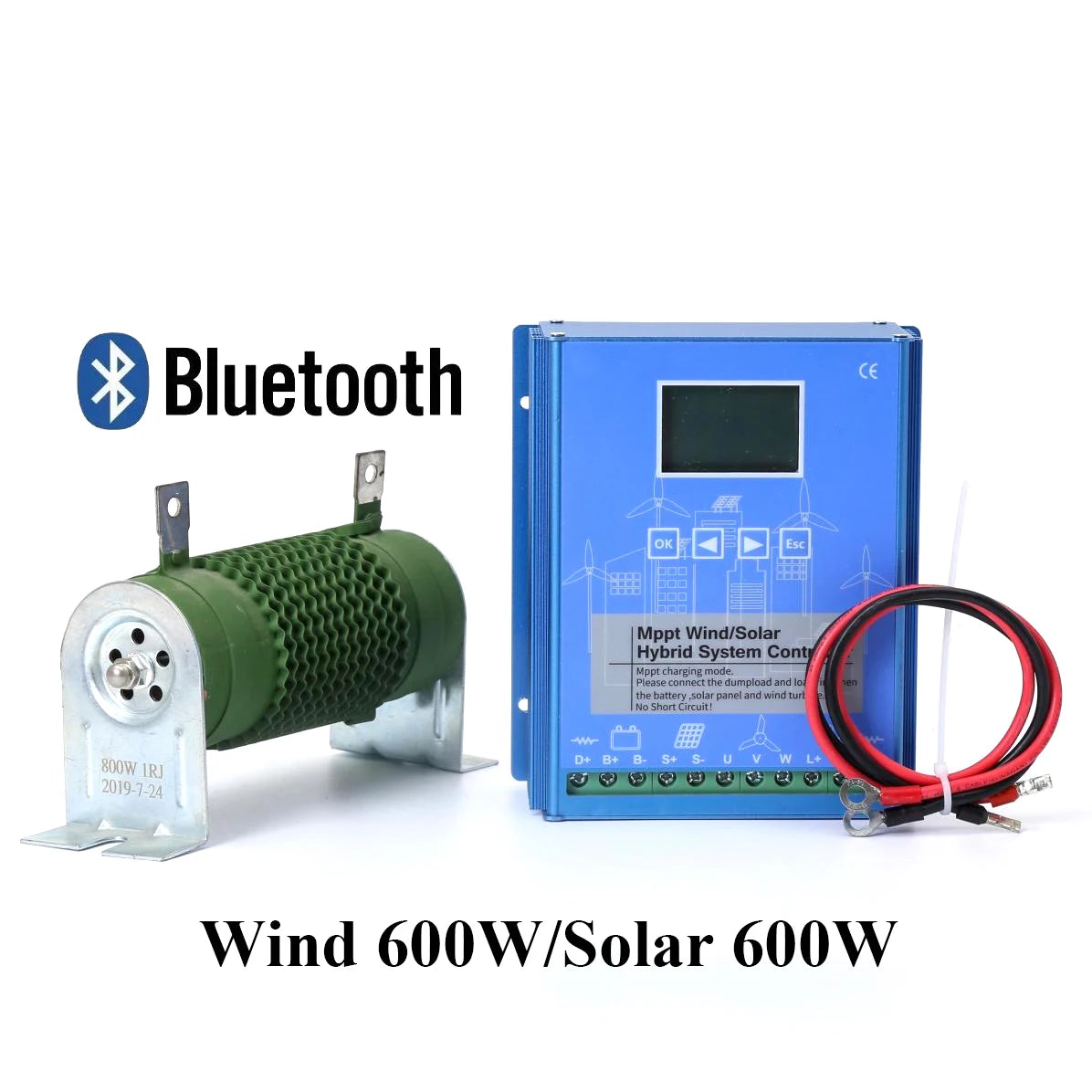

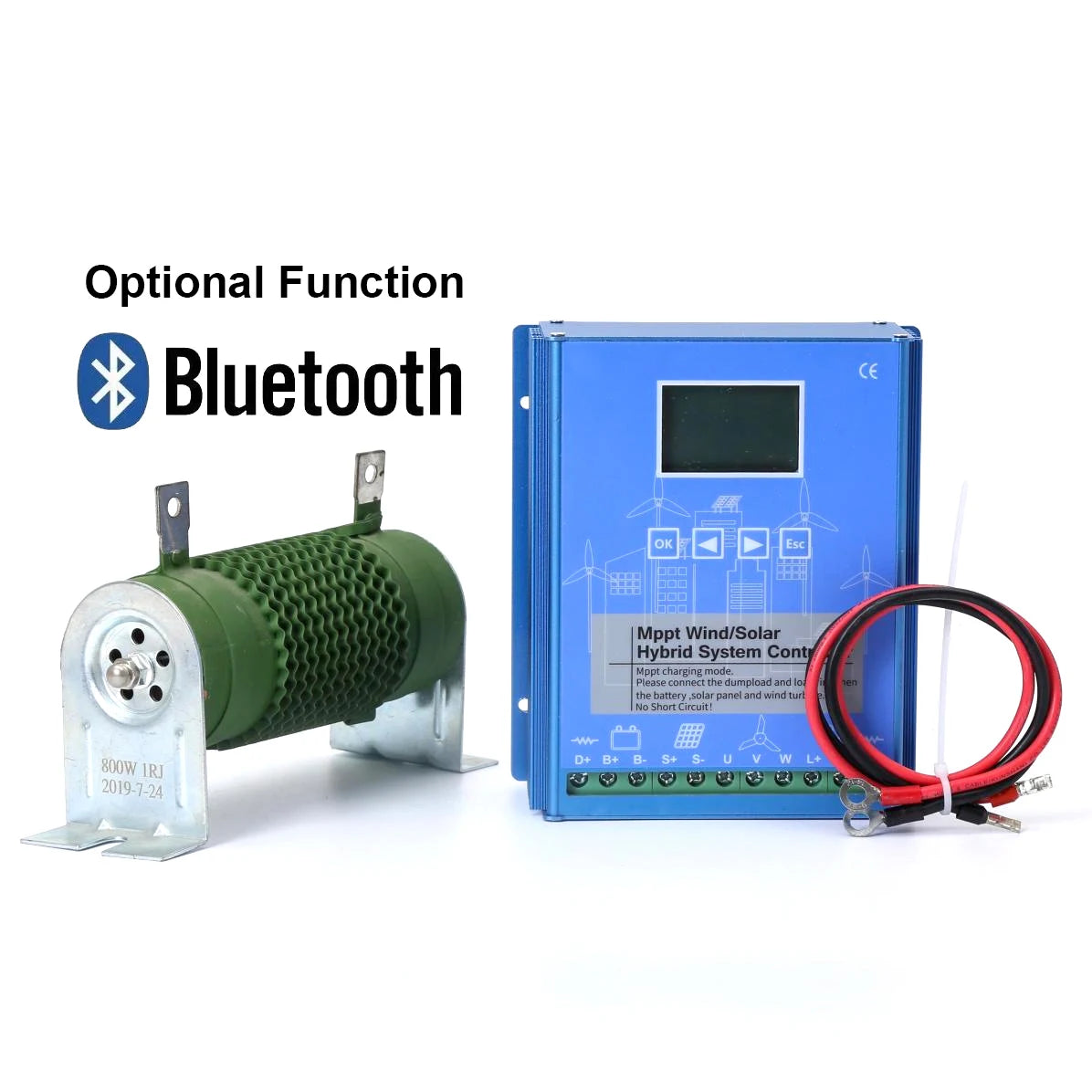

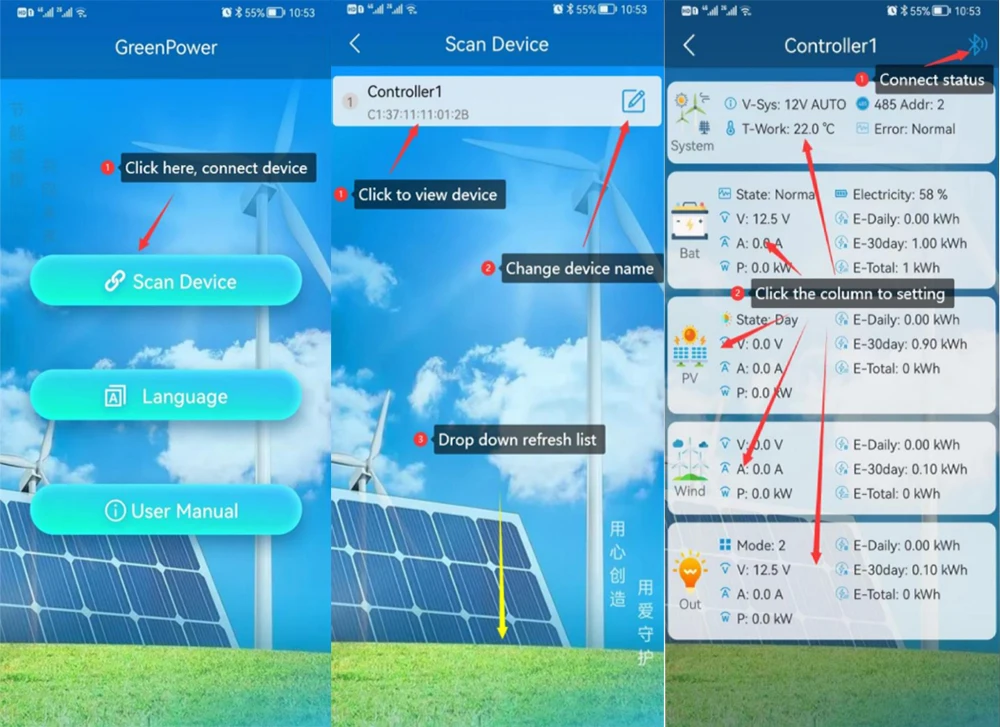

Bluetooth & APP (Only for Andriod Phones) is optional function. If you need it, please choose those item models with Bluetooth "BT".
