48V 100Ah 200ah LifePO4 battery Built-in BMS 5.12kWh 32 Parallel CAN/RS485 Communication Protocol Lithium Ion Battery EU no tax

48V 100Ah Lifepo4 Battery

Specifications

Nominal Voltage: 51.2V

Nominal Capacity: 100Ah 0.2C

Communication Protocol: CAN RS485

Parallel : Max 32 Parallel

Energy: 5120Wh

Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.

Charge Voltage: 58.4±0.4V

Charger Current: 20A(0.2C)

Max Charging Current: 100A

Max Discharging Current: 100A

Discharge Cut-off Voltage: 40.0V

Water Dust Resistance: IP5

Case Material: Metal

Dimension (L/W/H): 455*480*160mm /

Weight: Approx. 42kg

Terminal Type: Dual M8

48V 100Ah Lifepo4 Battery why choose lifepo4 battery ?

deep cycle lithium-ion battery has higher energy density, more stable performance and greater power. LiFepo4 battery will not burn when overcharged, overdischarged, overcurrent or short circuit, and can withstand high temperatures without decomposition. It can support fast charging and solar panel charging. Our LiFepo4 batteryis a green battery, it does not contain any heavy metals and rare metals and is more environmentally friendly.

48v 100Ah Lifepo4 Battery Built-In 120A BMS Battery Management System

Our LiFePO4 battery has built-in BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate. Built-in high temp cut off prevents charging over 122 °F (50 °C). Plus, Li-Ion batteries can be safer than Lead Acid batteries, which have no protection against ground faults. This product fits for outdoor camping power and indoor easy installation.

48v 100Ah lifepo4 battery Cycle Life over 6000 times

LiFePO4 battery provides 6000cycles, which is more than 10 times to Lead Acid with 400cycles. LiFePO4 battery has a 10-year service life, three times longer than the Lead Acid’s 3-year .

48v 100Ah lifepo4 battery max support in 32 parallel

LiFePO4 Battery DO NOT support a connection in series, use only supports connected in 32 parallel to get 48V3200Ah larger capacity (Max 3200Ah ) . Up to 4 identical batteries for up to 3200Ah capacity battery would be able to support max. which makes it perfect for off-grid solar systems and outdoors applications such as home backup power, RV, camping, sailboat, etc.

Our lithium iron phosphate battery has a wide range of applications

LiFePO4 batteries can be used in the following fields: electric vehicles, recreational vehicles, golf carts, boathouses, towing motors, lighting, UPS backup power supply, home solar equipment, portable TV, etc.

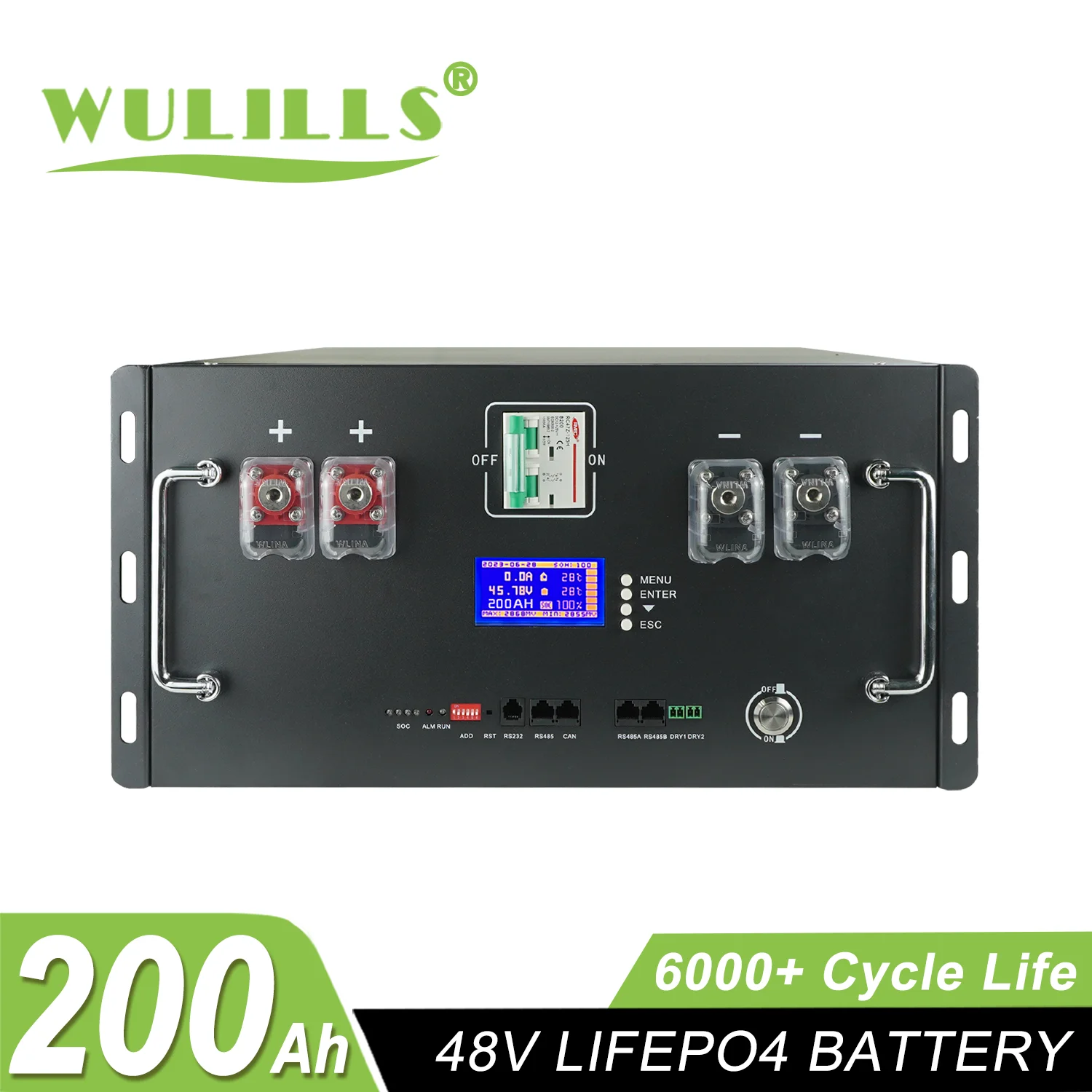

48v 200AH Lifepo4 Batttery lifepo4

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 200A Max 32 Parallel
Energy: 10240Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 200A
Max Discharging Current: 200A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 440*580*240mm /
Weight: Approx. 90kg
Terminal Type: Dual M8

When customers encounter any problems after purchasing products, we will answer them in the first time to ensure that customers can get a good shopping experience and make the promise of 5 year warranty.
